Cladding Testing And Replacement In Bromley

Professional Cladding Testing and Replacement in Bromley is a critical requirement for building owners and managing agents responsible for multi-storey residential and commercial properties. As the regulatory landscape regarding external wall systems continues to tighten, ensuring that your building’s façade is both compliant and safe has become a complex engineering and logistical challenge.

On this page
  1. 1.Key Takeaways
  2. 2.Understanding Cladding Testing and Replacement in Bromley
  3. 3.The Investigation Phase: Cladding Testing
  4. 4.When is Replacement Necessary?
  5. 5.The Complexity of Recladding in Occupied Buildings
  6. 6.Regulatory Compliance and the Building Safety Act
  7. 7.Materials Used in Modern Replacement Projects
  8. 8.The Process: From Initial Contact to Completion

Cladding testing in Bromley

In Bromley, as across Greater London, the diversity of the building stock—ranging from post-war tower blocks to modern luxury apartment complexes—means there is no "one size fits all" approach to façade safety. Managing these assets requires a systematic process of investigation, technical assessment, and targeted remediation to ensure long-term structural integrity and fire safety.

Whether you are dealing with potential combustible materials, water ingress, or deteriorating fixings, the goal is to move from uncertainty to a clear, actionable plan. This involves identifying exactly what materials are present, how they were installed, and whether they meet current UK building regulations and safety standards.

Key Takeaways

  • Compliance is Non-Negotiable: All high-rise buildings must adhere to the latest Building Safety Act requirements and fire safety standards for external walls.
  • Testing Precedes Action: Comprehensive intrusive inspections are necessary to determine if a full replacement is required or if localised repairs are sufficient.
  • Holistic View: Effective remediation looks beyond just the outer panel, assessing the insulation, cavity barriers, and substrate fixings.
  • Bromley Context: Local planning and logistics in Bromley require specific expertise in managing occupied buildings and urban access constraints.
  • Risk Management: Professional cladding services reduce liability for building owners while protecting the asset value and safety of residents.

Understanding Cladding Testing and Replacement in Bromley

The process of Cladding Testing and Replacement in Bromley is a multi-stage technical discipline focused on the "Building Envelope"—the physical separator between the conditioned and unconditioned environment of a building. When this envelope fails, or is found to be non-compliant, it poses significant risks to the occupants and the building’s longevity.

Testing involves more than just a visual check. It requires opening up the façade to inspect the internal composition. Replacement, on the other hand, is the structured removal of non-compliant or damaged systems and the installation of modern, high-performance alternatives that meet A1 or A2 fire ratings.

What Defines a Modern Cladding System?

Modern cladding is rarely a single material. It is a complex assembly consisting of several layers designed to work in harmony. To understand why testing is necessary, one must understand these components:

  • The Rainshield: The visible outer panel (e.g., ACM, HPL, Zinc, or Terracotta) that protects against the elements.
  • The Cavity: A ventilated space that allows moisture to escape and prevents damp.
  • Cavity Barriers: Essential fire-stop materials designed to close the cavity in the event of a fire, preventing the "chimney effect."
  • Insulation: Thermal materials (often mineral wool or foam boards) fixed to the building substrate.
  • Support Framework: The rails and brackets that hold the system in place.

The Investigation Phase: Cladding Testing

Before any remedial work begins, a thorough investigation is paramount. At CladdingTesting.com, we believe that jumping to conclusions without data leads to unnecessary costs and potential safety gaps. In Bromley, where many buildings have undergone various refurbishments over decades, the "as-built" drawings rarely match the reality of what is behind the panels.

Cladding Testing is designed to bridge this gap between theory and reality. It provides the empirical evidence needed by insurers, mortgage lenders, and the Fire and Rescue Service to confirm a building’s status.

Intrusive Inspections and Sampling

An intrusive inspection involves the strategic removal of small sections of the cladding to view the build-up behind the panels. This is not a destructive process in the long term, as the sections are carefully reinstated or temporary weatherproofing is applied.

During these inspections, we look for:

  1. Material Identification: Using laboratory analysis to determine if panels are Aluminium Composite Material (ACM), High-Pressure Laminate (HPL), or other composites.

  2. Insulation Type: Determining if the insulation is combustible or non-combustible.

  3. Cavity Barrier Placement: Verifying if fire breaks are installed at floor levels, around windows, and at vertical compartment lines.

  4. Fixing Integrity: Checking for corrosion or mechanical failure in the support rails.

Technical Reporting and EWS1 Forms

Following the testing, the data is compiled into a technical report. For residential buildings over 11 metres (or those with specific risk factors), this often informs the External Wall System (EWS1) assessment. This document is vital for property transactions in Bromley, as many lenders will not offer mortgages on high-rise flats without a satisfactory EWS1 rating.

When is Replacement Necessary?

Not every building requires a full reclad. The results of the Cladding Testing and Replacement in Bromley process often point toward three distinct paths: maintenance, remediation, or full replacement.

1. Localised Repairs and Maintenance

If the core materials are safe and compliant, but the building is suffering from aesthetic deterioration or minor leaks, repairs are the most economical route. This might include replacing individual damaged panels, renewing silicone sealants, or clearing blocked drainage channels within the rainscreen system.

2. Targeted Remediation

In many cases, the outer cladding panels are acceptable, but the internal fire-stopping is deficient. Remediation involves removing sections of the cladding to install or fix cavity barriers and then replacing the original panels. This is a common requirement in Bromley for buildings constructed in the early 2000s where fire-stopping standards were sometimes applied inconsistently.

3. Full Cladding Replacement

Replacement is required when the materials themselves pose a significant fire risk (such as Category 3 ACM) or when the system has reached the end of its functional life. A full reclad involves stripping the building back to its concrete or steel structure and installing a completely new, compliant external wall system.

The Complexity of Recladding in Occupied Buildings

One of the most significant challenges in Bromley is performing major works while residents continue to live in the building. This requires a high level of logistical planning and a sensitivity to the needs of the occupants.

Managing a live site involves:

Access Solutions: Deciding between traditional scaffolding, mast climbers, or rope access. Scaffolding offers the best platform for heavy replacement work but can impact resident privacy and natural light for long periods.

Noise and Dust Mitigation: Implementing strict working hours and using specialized equipment to reduce the impact of drilling and panel removal.

Safety Exclusion Zones: Ensuring that pedestrians and residents are kept safe from overhead works, particularly in busy Bromley town centre locations.

Resident Liaison

Clear communication is essential. Residents need to know when work will be happening outside their windows, how their privacy will be protected, and what the final outcome will be. A dedicated liaison strategy helps reduce the friction that naturally occurs during multi-month construction projects.

Cladding testing in Bromley

Regulatory Compliance and the Building Safety Act

The landscape for Cladding Testing and Replacement in Bromley is governed by the Building Safety Act 2022. This legislation has fundamentally changed how high-rise buildings (defined as Higher-Risk Buildings or HRBs) are managed and remediated.

Key regulatory considerations include:

The Golden Thread: Building owners must maintain a digital record of the building’s design, construction, and management. Any cladding replacement work must be meticulously documented to form part of this "thread."

Gateway Regimes: For major recladding projects, there are strict stop/go points (Gateways) where the Building Safety Regulator must approve the plans before work can proceed or be signed off.

Accountable Persons: There are now clear legal definitions of who is responsible for the safety of the building, increasing the personal liability for directors of management companies and freeholders.

Materials Used in Modern Replacement Projects

When selecting materials for a replacement project in Bromley, we focus on durability, aesthetics, and, most importantly, fire performance. Under current UK regulations, buildings over 18 metres (and increasingly those over 11 metres) generally require "non-combustible" materials (Class A1) or materials of "limited combustibility" (Class A2-s1, d0).

Common Rainscreen Materials for Replacement

Material TypePrimary BenefitsTypical Application
Solid AluminiumA1 Fire Rated, lightweight, highly recyclable, and available in any colour.Modern high-rise residential towers.
Terracotta/CeramicNatural appearance, excellent thermal mass, and completely non-combustible.Buildings requiring a traditional or "earthy" aesthetic.
Fibre CementCost-effective, durable, and resistant to rot or fungal growth.Low to mid-rise housing and commercial units.
Zinc or CopperPrestige appearance, long lifespan, and develops a natural patina.Architectural feature buildings and luxury apartments.

The Process: From Initial Contact to Completion

Engaging in Cladding Testing and Replacement in Bromley follows a logical, step-by-step methodology to ensure no detail is missed. At CladdingTesting.com, we guide clients through this entire lifecycle.

Step 1: Desktop Review

We begin by reviewing all available documentation, including O&M manuals, previous fire risk assessments, and architectural drawings. This helps us identify potential "red flag" materials before we even arrive on site.

Step 2: On-Site Inspection and Sampling

Our technical team visits the property to conduct a physical survey. We use MEWPs (Mobile Elevated Work Platforms) or mast climbers to access various elevations. We take core samples of materials for independent laboratory testing to confirm their exact composition.

Step 3: Risk Assessment and Options Appraisal

Once we have the lab results and survey findings, we produce a report. This report doesn't just list problems; it provides a roadmap. We outline the risks, the required actions, and the estimated costs for different levels of intervention.

Step 4: Design and Specification

If replacement is necessary, we work with architects and fire engineers to design a new system. This includes detailed drawings of interfaces—where the cladding meets windows, roofs, and balconies—which are often the most vulnerable points for fire spread or water ingress.

Step 5: Procurement and Delivery

We manage the procurement of materials and the mobilisation of the site. In a busy borough like Bromley, this involves coordinating with the local council for permits, managing scaffolding licenses, and setting up secure site compounds.

Step 6: Final Certification and Handover

Upon completion, the work is inspected and signed off. We provide all the necessary documentation to update the building's "Golden Thread" and, where applicable, secure an updated EWS1 rating of B1 or A1, allowing for the free movement of property sales.

Water Ingress and Structural Deterioration

While fire safety is currently the primary driver for Cladding Testing and Replacement in Bromley, it is not the only reason to investigate a façade. Many older cladding systems suffer from systemic water ingress, which can lead to significant structural issues.

When water penetrates the rainscreen, it can saturate the insulation, rendering it useless from a thermal perspective. More dangerously, it can cause the corrosion of the steel wall ties or the rotting of timber sub-frames. Over time, this weakens the connection between the cladding and the building, creating a risk of panel detachment during high winds.

Our testing process includes moisture mapping and thermal imaging to identify hidden leaks that are not yet visible from the interior of the flats. Addressing these issues early via targeted repairs can save building owners hundreds of thousands of pounds in full replacement costs later.

Cost Considerations and Funding

The cost of cladding works can be significant, ranging from tens of thousands for minor remediation to millions for full recladding of large tower blocks. In Bromley, property managers must navigate the various funding routes available to mitigate the financial burden on leaseholders.

The Building Safety Fund (BSF)

For residential buildings over 18 metres, the government’s Building Safety Fund provides grants for the removal of unsafe cladding. Navigating the BSF application process is notoriously complex, requiring detailed technical evidence and specific legal structures. Our role often involves providing the technical data required to support these applications.

Cladding Safety Scheme (CSS)

For buildings between 11 and 18 metres, the CSS (formerly the Medium-Rise Scheme) offers a similar route for funding. Ensuring your building is correctly registered and that the scope of work meets the fund's criteria is essential for a successful claim.

Choosing a Specialist for Bromley Projects

Bromley’s unique geography—a mix of high-density urban centres and leafy residential areas—presents specific challenges for construction logistics. Choosing a specialist for Cladding Testing and Replacement in Bromley means selecting a partner who understands these local nuances.

A specialist provider should demonstrate:

Technical Competence: A deep understanding of façade physics, not just "installing panels."

Safety Record: A proven track record of working safely at height on occupied buildings.

Integrated Approach: The ability to handle everything from the first hole drilled for a sample to the final flashing installed on the roof.

Regulatory Knowledge: Up-to-the-minute understanding of the Building Safety Regulator’s requirements.

The Long-Term Value of Quality Façade Management

Investing in Cladding Testing and Replacement in Bromley is not just a regulatory hurdle; it is an investment in the building's future. A modern, well-installed cladding system improves the building’s thermal performance, reduces energy bills for residents, and protects the underlying structure from the elements for decades.

Furthermore, by addressing cladding issues proactively, building owners can avoid the massive spikes in insurance premiums that often follow "unrated" or "high-risk" façade findings. A clear, documented history of testing and remediation provides insurers with the confidence they need to offer competitive rates.

Ultimately, the goal of any project should be to move the building from a state of risk to a state of compliance and reliability. This requires a partner who understands the engineering, the law, and the human element of working on people's homes. At CladdingTesting.com, we provide that expertise, ensuring that every building in Bromley we touch is made safer for the long term.

Cladding testing in Bromley

Last updated

Services

Services available in Bromley

  • Cladding Replacement

    For building owners and property managers across the United Kingdom, cladding replacement has shifted from an aesthetic or maintenance consideration to a critical matter of safety, compliance, and asset protection. The complexity of modern external wall systems means that replacing a façade is no longer a simple construction task; it is a multi-disciplinary engineering project that requires a deep understanding of fire dynamics, structural load, and building regulations.

  • Recladding A House

    Recladding a house is the process of removing a building’s existing external wall covering and replacing it with a new, compliant system. In the UK, this work is typically undertaken to resolve issues involving water ingress, structural deterioration, thermal inefficiency, or fire safety non-compliance in multi-storey residential blocks.

  • PAS 9980 Assessment

    A PAS 9980 assessment is a formal methodology used to evaluate the fire risk of external wall systems on multi-storey residential buildings. Introduced by the British Standards Institution (BSI) in early 2022, it provides a structured framework for competent professionals to determine whether a building’s cladding and wall construction pose an acceptable or unacceptable risk to life safety. Rather than focusing solely on whether materials are combustible, the assessment considers the entire wall assembly and how a fire might spread across the building envelope.

  • FRAEW Assessment

    Understanding the safety and compliance profile of a building’s exterior is now a central requirement for property professionals across the United Kingdom. A FRAEW assessment is a specialised technical evaluation of the external wall construction of a multi-storey, multi-occupied residential building. Its purpose is to assess the fire risk contributed by the wall system and determine whether remediation or mitigation is necessary to ensure resident safety.

  • Cladding Survey

    A cladding survey is a comprehensive technical assessment of a building's external wall system, designed to identify material composition, installation quality, and structural integrity. It involves a systematic investigation of the façade—including panels, insulation, cavity barriers, and fixings—to determine compliance with building regulations and assess the need for repair, remediation, or replacement.

  • Intrusive Cladding Survey

    Understanding the internal composition of a building’s facade is a critical requirement for modern property management. An intrusive cladding survey is a detailed physical investigation where specialist engineers open up specific sections of an external wall system to inspect hidden components. Unlike visual inspections, these surveys provide definitive evidence regarding the presence of combustible materials, the adequacy of cavity barriers, and the structural integrity of fixing systems.

  • External Wall Survey

    An external wall survey is a comprehensive technical assessment of a building’s outer envelope, designed to evaluate the safety, compliance, and physical condition of the entire façade system. This professional inspection identifies defects in cladding materials, insulation, cavity barriers, and structural fixings to ensure the building meets current UK fire safety regulations and performance standards.

  • EWS1 Survey

    The EWS1 survey (External Wall System) is a technical assessment process designed to evaluate the fire safety of a building's external wall construction. Introduced by the Royal Institution of Chartered Surveyors (RICS), it results in an EWS1 form that confirms whether the cladding, insulation, and cavity barriers meet specific safety criteria or if remediation is required to mitigate risk. This process is essential for residential high-rise buildings, particularly those over 11 metres, to facilitate mortgage lending and ensure resident safety.

  • Cavity Barrier Remediation

    Cavity barrier remediation is the technical process of identifying, correcting, or replacing defective fire-stopping measures within the external wall systems of a building. It ensures that the "cavity"—the gap between the structural wall and the external cladding—is properly compartmentalised to prevent the rapid spread of fire and smoke. In the UK, this work is essential for aligning high-rise and multi-storey buildings with current Building Regulations and fire safety standards.

  • Fire Stopping Remediation

    Fire stopping remediation is the systematic process of identifying, repairing, or replacing failed and non-compliant fire protection measures within a building's service penetrations, joints, and cavities. In the context of the external building envelope, this specifically involves restoring the integrity of cavity barriers and fire breaks to prevent the spread of smoke and flame through the facade system.

  • Rainscreen Cladding Remediation

    Rainscreen cladding remediation refers to the systematic process of investigating, repairing, or replacing external wall systems that have failed to meet safety, structural, or weather-performance standards. In the UK, this typically involves addressing non-compliant combustible materials, defective cavity barriers, or water ingress issues in high-rise and multi-occupancy buildings.

  • Higher Risk Building Cladding Remediation

    Higher risk building cladding remediation is the technical process of identifying, removing, or upgrading non-compliant external wall systems on buildings that meet specific height or occupancy criteria under UK law. In the United Kingdom, this primarily concerns residential buildings over 18 metres or seven storeys in height, where the presence of combustible materials presents a significant risk to life safety. Remediation is not merely a cosmetic update; it is a complex engineering and legal requirement designed to ensure that the building envelope prevents the spread of fire and meets the

  • Unsafe Cladding Removal

    The safety of a building’s external wall system is a critical concern for property owners and managers across the United Kingdom. Following changes in legislation and building regulations, many structures have been identified as having hazardous façade materials that require immediate attention. Unsafe cladding removal is the systematic process of identifying, stripping, and replacing external wall components that pose a significant fire risk or fail to meet current compliance standards.

  • Cladding Water Ingress

    Cladding water ingress refers to the uncontrolled penetration of moisture through a building's external wall system into the internal structure or cavity. This failure in the building envelope typically occurs due to defective seals, poor installation of flashing, damaged panels, or systemic design flaws. Left unaddressed, it leads to structural decay, insulation failure, and compromised internal environments.

  • Spandrel Panel Remediation

    Spandrel panel remediation is the technical process of investigating, repairing, or replacing the non-vision infill panels located between the glazed areas of a building's façade. These panels, often found in curtain walling and ribbon window systems, are critical for maintaining the thermal performance, moisture resistance, and fire safety of the external wall envelope.

  • Cladding Subframe Replacement

    Ensuring the structural integrity of a building’s exterior requires more than just inspecting the visible panels. The cladding subframe replacement process involves the systematic removal and renewal of the hidden metal or timber framework that secures the rainscreen to the building structure. This work is essential when the original grid has suffered from corrosion, systemic installation defects, or fails to meet modern fire safety standards for high-rise residential and commercial properties.

  • ACM Cladding Remediation

    ACM cladding remediation refers to the professional process of identifying, assessing, and addressing the fire safety and structural risks associated with Aluminium Composite Material panels on a building's exterior. This systematic approach involves determining whether panels require localised repair, specific safety upgrades, or a complete replacement of the external wall system to meet current UK building regulations and the Building Safety Act 2022.

  • Aluminium Cladding Remediation

    Aluminium cladding remediation refers to the systematic process of investigating, repairing, or replacing aluminium-based external wall systems that have been identified as defective, non-compliant, or deteriorating. This technical intervention ensures that the building envelope meets current UK Building Regulations, particularly regarding fire safety, structural stability, and moisture management.

  • Combustible Insulation Replacement

    In the wake of evolving fire safety regulations in the UK, combustible insulation replacement has become a priority for building owners and property managers. The presence of flammable materials within an external wall system poses significant risks to life safety and property value. Addressing these issues requires a systematic approach to identification, technical assessment, and remedial execution.

  • External Wall Insulation Remediation

    External wall insulation remediation is the process of inspecting, repairing, or replacing a building's external insulation system to ensure it meets modern fire safety, thermal performance, and structural standards. This specialist intervention addresses systemic failures in EWI systems, such as water ingress, delamination, or the presence of combustible materials that no longer comply with UK Building Regulations, specifically for buildings over 11 or 18 metres.

  • HPL Cladding Remediation

    HPL cladding remediation refers to the systematic process of investigating, removing, or modifying external wall systems that incorporate High-Pressure Laminate panels. In the UK, this work is typically driven by the need to ensure building safety and compliance with the Building Safety Act and updated Fire Safety Regulations. The process involves identifying combustible materials, assessing the risk to the building envelope, and implementing engineered solutions to achieve a non-combustible or fire-safe finish.

  • Metal Cladding Remediation

    Metal cladding remediation refers to the professional process of identifying, investigating, and resolving defects within metal-based building envelope systems. It encompasses a range of actions from localised repairs and component replacement to full-system overhauls. This process ensures the structure remains weather-tight, aesthetically sound, and fully compliant with current UK fire safety and building regulations.

  • Cladding Fire Safety Survey

    Following the Grenfell Tower tragedy, the landscape of building safety in the United Kingdom changed permanently. A cladding fire safety survey is now a fundamental requirement for the management of high-rise and multi-storey buildings. These technical assessments are designed to identify combustible materials, verify the presence of adequate fire-stopping, and ensure the entire external wall system meets current life-safety standards.

  • Cladding Inspection

    A cladding inspection is a technical assessment of a building’s external wall system to evaluate its condition, safety, and regulatory compliance. It involves a systematic review of the outer skin, insulation, cavity barriers, and structural fixings to identify defects such as material deterioration, water ingress, or non-compliant fire-safety components. This process provides building owners with the data required to plan repairs, remediation, or full replacement.

  • Cladding Investigation

    A cladding investigation is a technical assessment of a building’s external wall system to identify defects, material composition, and compliance with safety standards. This process involves physical inspections, intrusive testing, and material analysis to determine if the façade is structurally sound, fire-safe, and performing as intended.

  • Curtain Wall Remediation

    Curtain wall systems are among the most complex elements of a building’s exterior. These non-structural outer coverings, typically comprising aluminium frames, glass infill panels, and spandrel sections, are designed to protect the structure from the elements while providing aesthetic appeal. However, when these systems fail due to age, poor installation, or material degradation, the result is often water ingress, thermal inefficiency, or structural instability. Curtain wall remediation is the professional process of identifying these failures and implementing targeted engineering solutions to

  • Balcony Cladding Remediation

    Balcony cladding remediation is the technical process of identifying, managing, and rectifying safety and structural defects within the external wall systems surrounding balconies. In the United Kingdom, this often involves addressing non-compliant combustible materials, inadequate fire stopping, and failed waterproofing interfaces that pose risks to life safety and building longevity.

  • Breather Membrane Replacement

    A breather membrane replacement is a specialist remediation process involving the removal of existing external wall layers to install a new, high-performance water-resistant but vapour-permeable layer. This critical component protects the building’s primary structure and insulation from moisture ingress while allowing internal water vapour to escape, preventing interstitial condensation and structural decay.

  • Cladding Bracket Replacement

    Cladding bracket replacement is a technical remedial process involving the removal of failed or non-compliant support components within a building's external wall system and installing new, structurally sound fixings. This intervention ensures the façade remains securely attached to the primary structure, maintains required cavity depths, and meets modern fire safety standards. It is typically required when inspections reveal structural fatigue, significant corrosion, or the presence of combustible components within the "helping hand" bracket system.

  • Cladding Rail Replacement

    Cladding rail replacement is the process of removing and renewing the structural framework that secures external façade panels to a building’s primary structure. This infrastructure, often hidden behind the visible rainscreen, is critical for managing wind loads, supporting the weight of the cladding, and ensuring the fire safety performance of the external wall system.

  • Parapet Cladding Remediation

    Parapet cladding remediation is the technical process of assessing, repairing, or replacing the external façade elements located at the topmost edge of a building’s wall system. These areas, known as parapets, serve as critical junctions between the roof and the external wall, requiring precise fire stopping, structural integrity, and weatherproofing to ensure the safety of the entire building envelope.

  • Fire Barrier Remediation

    Fire barrier remediation is the technical process of correcting, repairing, or replacing failed cavity barriers and fire stops within a building’s external wall system. This specialist work ensures that in the event of a fire, the concealed gaps behind cladding panels do not act as chimneys that allow flames and smoke to spread rapidly across the facade.

  • Brick Slip Cladding Remediation

    Brick slip cladding remediation refers to the systematic process of investigating, repairing, or replacing decorative thin-clay brick veneers that have failed due to structural issues, moisture ingress, or non-compliance with fire safety regulations. This technical intervention ensures the external wall system meets current UK Building Regulations, specifically regarding thermal performance and fire resistance for multi-storey buildings.

  • Fibre Cement Cladding Remediation

    Fibre cement cladding remediation refers to the systematic process of identifying, testing, and correcting defects in external wall systems that use fibre-reinforced cementitious panels. This professional intervention addresses issues ranging from structural instability and moisture-related degradation to fire safety non-compliance, ensuring the building envelope meets current UK Building Regulations and British Standards.

  • GRC Cladding Remediation

    GRC cladding remediation refers to the systematic process of identifying, testing, and rectifying defects in Glass Reinforced Concrete (GRC) facade systems. This process encompasses everything from localised structural repairs to comprehensive GRC cladding replacement where panels have reached the end of their service life or fail to meet modern safety standards.

  • Insulated Panel Replacement

    External wall systems using pre-fabricated units are a staple of modern UK construction. Insulated panel replacement refers to the systematic removal and substitution of composite or sandwich panels that no longer meet thermal, structural, or fire safety standards. This process is essential for maintaining the building envelope’s integrity and ensuring compliance with the Building Safety Act and updated Building Regulations.

  • SFS Remediation

    SFS remediation refers to the professional investigation, structural repair, or full-scale replacement of Steel Framing Systems (SFS) within a building’s external wall. In the UK, this process is typically required when the light gauge steel framing—which provides the structural skeleton for the façade—is found to be corroded, incorrectly installed, or failing to meet modern fire safety and thermal performance standards. A successful remediation strategy ensures the structural integrity of the building envelope while ensuring compliance with the Building Safety Act and updated Building Regulat

  • Sheathing Board Replacement

    In the complex hierarchy of an external wall system, the sheathing board occupies a critical position. Often hidden behind the decorative cladding and insulation layers, it serves as the primary structural skin of the building’s frame. When this component fails due to moisture ingress, structural movement, or fire safety non-compliance, sheathing board replacement becomes a technical necessity to ensure the long-term viability and safety of the property.

  • Steel Cladding Remediation

    Steel cladding remediation is the process of inspecting, repairing, or replacing external metal wall systems to ensure they meet modern fire safety, structural, and thermal standards. In the UK, this work is essential for high-rise residential and commercial buildings where existing steel façades may have deteriorated or were originally installed without adequate cavity barriers and non-combustible insulation.

  • Terracotta Cladding Remediation

    Terracotta cladding remediation refers to the specialist process of identifying, managing, and resolving defects within external wall systems that utilise fired-clay tiles or rainscreen panels. This technical intervention ensures that the building envelope remains structurally sound, weather-tight, and compliant with current UK fire safety regulations and Building Regulations (specifically Approved Document B).

  • Timber Cladding Remediation

    External timber facades have long been a popular choice for UK architects and developers, offering a natural aesthetic and strong environmental credentials. However, as buildings age and regulatory standards evolve—particularly following the Building Safety Act 2022—many property owners are finding that these systems require significant intervention.

  • Zinc Cladding Remediation

    Zinc cladding remediation is the technical process of identifying, managing, and resolving defects in zinc-based facade systems. This work typically involves structural inspections, moisture analysis, and the repair or replacement of non-compliant components. Effective remediation ensures that the external wall system meets modern fire safety standards, provides weather protection, and maintains the building’s aesthetic integrity.

  • Cladding Adhesion Testing

    Cladding adhesion testing is a critical technical assessment used to determine the structural integrity of bonded façade systems. This process measures the tensile strength of the bond between the cladding material and its substrate, ensuring the system can withstand wind loads, thermal expansion, and environmental degradation. For building owners and managing agents, these tests provide empirical evidence of whether a façade remains safe or requires remedial intervention.

  • Cladding Testing

    Professional cladding testing is a rigorous process used to evaluate the safety, integrity, and regulatory compliance of a building's external wall system. It involves physical sampling, laboratory analysis, and on-site inspections to identify material composition, fire performance, and structural stability. This technical assessment ensures that façades meet current UK building regulations and provides a clear pathway for necessary remediation or repair works.

  • Cladding Pull Out Testing

    Ensuring the structural stability of a building envelope requires more than a visual assessment of the exterior panels. Cladding pull out testing is a vital onsite procedure used to measure the physical load-bearing capacity of fixings and anchors within an external wall system. By applying a controlled tensile load to a fastener, engineers can verify that the substrate—whether it be concrete, masonry, or steel—is capable of holding the cladding system securely under environmental stresses such as wind loading and self-weight.

  • Cladding Wind Load Assessment

    A cladding wind load assessment is a technical engineering evaluation used to determine the specific wind pressures a building’s external wall system must withstand. It involves calculating peak positive (pressure) and negative (suction) forces based on the building's height, location, and geometry to ensure that panels, fixings, and subframes remain structurally secure under extreme weather conditions.

  • GRP Cladding Remediation

    Glass Reinforced Plastic (GRP), often referred to as fibreglass, has been a staple in the UK construction industry for decades. Its lightweight nature, versatility in moulding, and durability made it a popular choice for architectural features, decorative cornices, and modular wall panels. However, as building safety standards evolve and the long-term performance of these materials becomes clearer, many property owners now face the technical challenge of GRP cladding remediation.

Cladding questions in Bromley

A typical intrusive inspection for a mid-sized building in Bromley usually takes 1 to 3 days on-site, depending on the number of elevations and the complexity of the cladding types. The subsequent laboratory testing and report writing can take a further 2 to 4 weeks.

Related areas

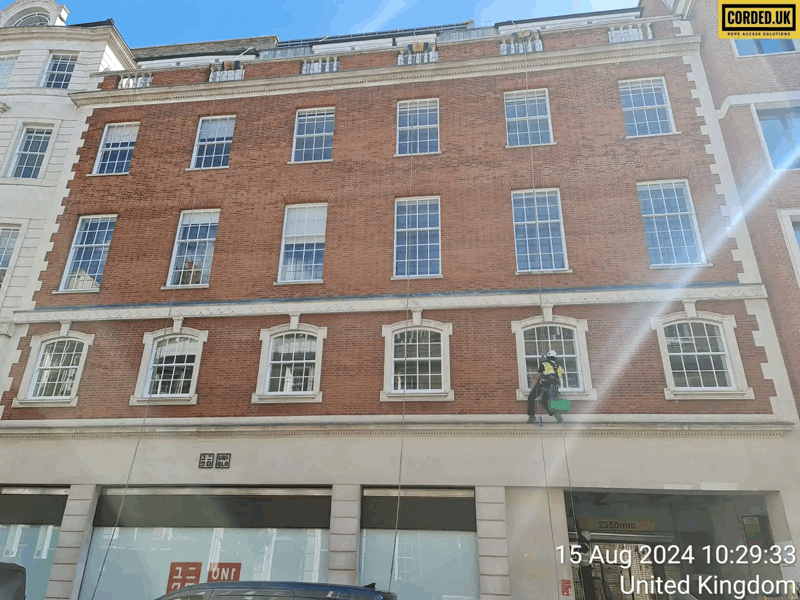

Rope Access Cladding Inspection on Brick FacadeRope access technician in harness inspecting upper-floor windows on a red brick building facade in London.rope access cladding inspection technician inspecting brick facade 7
