The process of cladding testing serves as the diagnostic foundation for any building envelope project. It is not merely a box-ticking exercise for compliance; it is a technical investigation designed to uncover hidden defects, moisture ingress, and combustible materials. In Hounslow, where the building stock ranges from post-war social housing to modern luxury apartments, the diversity of external wall systems requires a bespoke approach to every inspection.
For buildings exceeding 11 metres, the legislative landscape—shaped by the Building Safety Act 2022—has introduced rigorous standards for fire safety and structural performance. This guide outlines the technical pathways for investigating façade failures and the practical methodologies used to deliver large-scale remediation and replacement programmes in occupied urban environments.
Key Takeaways#
- Diagnostic Priority: Testing must always precede remediation to avoid unnecessary costs and ensure the underlying cause of failure is addressed.
- Regulatory Alignment: All works in Hounslow must comply with the latest amendments to Approved Document B and the Fire Safety England Regulations 2022.
- Individual Assessment: Not every failing façade requires full replacement; localised repairs or partial remediation are often viable, cost-effective alternatives.
- Resident Safety: Managing projects in occupied buildings requires specialised logistics, including fire-watch protocols and managed access systems.
- EWS1 Requirements: Professional testing is often a prerequisite for securing an External Wall System (EWS1) form, essential for property valuation and lending.
- Specialist Expertise: Working on high-rise structures in high-traffic areas like Hounslow demands precise planning regarding scaffolding, mast climbers, and site safety.
Cladding testing is the technical process of assessing an external wall system's components, including the outer rainscreen, insulation, cavity barriers, and sub-frame. In Hounslow, these assessments typically focus on identifying ACM (Aluminium Composite Material), HPL (High-Pressure Laminate), and other potentially combustible materials, alongside checking for structural degradation such as failed fixings or water-damaged substrate.
- Intrusive Inspection: Opening up small sections of the façade to view internal components.
- Laboratory Analysis: Testing material samples for fire performance and density.
- Remediation: Targeted action to fix specific defects without removing the entire system.
- Recladding: The complete removal and replacement of the external wall system with non-combustible alternatives.
The Regulatory Framework in West London#
The landscape of Cladding Testing and Replacement in Hounslow is dictated by national safety standards. Following the introduction of the Building Safety Act, the role of the Accountable Person (AP) has become central to building management. They are legally responsible for assessing and managing building safety risks, which starts with a comprehensive understanding of the façade.
The External Wall System (EWS) process was created to provide a consistent method for assessing the fire safety of external walls. For many property owners in Hounslow, a negative or missing EWS1 form can halt property sales or refinancing. Testing provides the evidence required for a qualified professional to sign off on the safety of the building or to recommend necessary remediation works.
Approved Document B and Cavity Barriers#
One of the most common issues discovered during testing is not the cladding panel itself, but the absence or incorrect installation of cavity barriers. These are designed to stop the spread of fire within the gap between the building and the cladding. In many Hounslow developments, intrusive testing reveals that these barriers are either missing or were installed with gaps that render them ineffective. Addressing these hidden defects is often the primary focus of remediation strategies.
Identifying Common Façade Failures#
Buildings in the Hounslow area are subject to specific environmental stressors, including vibration from overhead flight paths and varying levels of urban pollution. These factors, combined with historical construction practices, can lead to several types of failure that necessitate professional intervention.
1. Material Combustibility#
The most publicised risk involves the use of combustible materials in the external wall buildup. Beyond the well-known ACM panels, many buildings utilise combustible PIR (Polyisocyanurate) or PUR (Polyurethane) insulation. Testing determines the Euroclass rating of these materials to establish if they meet the required A1 or A2-s1, d0 non-combustible standards for tall buildings.
2. Water Ingress and Damp#
Cladding is primarily a "rainscreen"—its job is to protect the building from the elements. If joints fail or sealants degrade, water can penetrate the system. This leads to the saturation of insulation, which not only reduces thermal efficiency but can also cause structural rot in timber frames or corrosion in metal sub-structures. Our cladding testing services often include thermal imaging to identify these moisture pockets without damaging the façade.
3. Structural Fixing Failure#
The brackets and rails that hold cladding panels in place are subject to wind loading and thermal expansion. In older Hounslow developments, we frequently find that fixings have become loose or were never adequately specified for the height of the building. This poses a significant health and safety risk to the public and requires immediate structural reinforcement or replacement.
Methodology for Cladding Testing in Hounslow#
We approach every project with a clear, staged methodology. This ensures that building owners are not spending money on "guessing" the problem but are instead following a data-driven path toward a safe building envelope.
Stage 1: Desktop Study and Preliminary Review#
Before arriving on-site, we review all available "as-built" drawings, O&M manuals, and previous fire risk assessments. This helps us understand the intended design of the building. However, we often find that what was designed is not what was actually built, which is why physical testing is vital.
Stage 2: Intrusive Site Investigations#

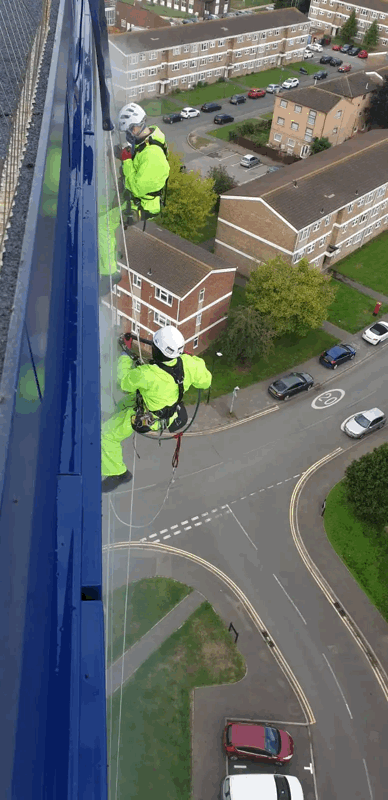

Our technical team uses a variety of access methods—including MEWPs (Mobile Elevated Work Platforms) and industrial rope access—to perform intrusive surveys. We remove small sections of cladding at various heights and orientations (such as near windows, rooflines, and floor junctions) to inspect the internal wall makeup.
Stage 3: Sampling and Laboratory Testing#
If the material composition is unknown, samples are taken and sent to UKAS-accredited laboratories. They undergo "bomb calorimeter" tests to determine their calorific value. This provides an empirical basis for deciding whether the material can stay or must be replaced.
Stage 4: Technical Reporting and Recommendations#
The final report doesn't just list problems; it provides solutions. We categorise risks as high, medium, or low. In many cases, we can demonstrate that a building is safe despite not having "perfect" modern cladding, or we can propose a remediation strategy that targets only the defective areas, saving the client significant capital expenditure.
When to Repair vs. When to Replace#
A common misconception in the Hounslow property market is that any issue with cladding requires a full, multi-million-pound recladding project. This is not always the case. Our expertise lies in determining the most proportionate response to the identified risks.
Criteria for Localised Repair#
Repair is often the best route when the overall system is compliant, but specific elements have failed. This might include:
• Replacing damaged or dented rainscreen panels.
• Re-sealing joints to prevent water ingress.
• Replacing individual failed fixings or brackets.
• Cleaning and coating systems to extend their aesthetic and functional life.
Remediation is required when the system is fundamentally sound but contains specific safety defects. For example, if a building has non-combustible panels but inadequate cavity barriers, we can perform targeted "strip-and-replace" works. This involves removing the panels, installing compliant fire breaks, and then re-installing the original panels. This is significantly faster and less disruptive for Hounslow residents than a full replacement.
Criteria for Full Replacement#
Complete replacement or recladding is the necessary solution when the core materials of the system (such as the insulation or the panels themselves) are combustible or when the structural failure is so widespread that the system is no longer viable. This process involves stripping the building back to the substrate and installing a completely new, Regulation 7 compliant external wall system.
Logistics of Recladding in Hounslow#
Hounslow is a densely populated borough with complex logistical challenges. Delivering a major recladding project here requires more than just construction knowledge; it requires sophisticated project management and a deep understanding of the local environment.
Access Strategies#
Choosing the right access method is critical for both cost and resident experience. For many Hounslow high-rises, traditional scaffolding is not the most efficient option. We often utilise Mast Climbing Work Platforms (MCWPs), which offer a smaller footprint at ground level and provide better security and light for residents compared to a scaffold-shrouded building.
Operating in Occupied Buildings#
The majority of Cladding Testing and Replacement in Hounslow occurs while residents are still living in their homes. This introduces unique challenges:
• Noise Management: Scheduling heavy works to avoid early mornings or late evenings.
• Privacy: Ensuring workers follow strict protocols when working outside windows.
• Fire Safety during Construction: Implementing enhanced fire-watch and temporary fire alarm systems while the original façade is being manipulated.
Proximity to Heathrow#
Special considerations must be made for buildings within the Heathrow flight path or airport perimeter. This includes height restrictions for cranes and ensuring that materials used do not create issues with radar interference or glint/glare for pilots. Our team coordinates with local aviation authorities to ensure all plant and machinery are cleared for use.
Technical Considerations for New Cladding Systems#
When a full replacement is selected, the new system must be designed for a 30-year+ lifespan. We don't just look at fire safety; we look at the holistic performance of the building envelope.
Replacement projects offer a unique opportunity to improve a building's energy efficiency. By installing superior non-combustible insulation, such as mineral wool, we can significantly reduce U-values, leading to lower heating costs for residents and a smaller carbon footprint for the building owner.
Acoustic Insulation#
In Hounslow, noise pollution is a significant factor. A well-designed façade replacement can include acoustic layers that dampen the sound of aircraft and road traffic, greatly improving the quality of life for those inside the building.
Façade Interfaces#
A cladding system is only as strong as its weakest link. We pay meticulous attention to interfaces—where the cladding meets windows, balconies, and rooflines. These areas are most prone to leaks and fire spread. Our designs ensure that these junctions are robustly detailed and correctly fire-stopped.
The Commercial Reality: Costs and Funding#
We understand that the cost of Cladding Testing and Replacement in Hounslow is a major concern for leaseholders and freeholders. Our role is to provide the technical documentation required to access funding and to manage the project to a fixed budget.
The Building Safety Fund (BSF)#
Many residential buildings in Hounslow qualify for the government's Building Safety Fund. Accessing this money requires a high level of technical detail, including evidence from intrusive surveys and professional costings. We work alongside surveyors and consultants to ensure that applications are robust and meet all the eligibility criteria for remediation funding.
Value Engineering without Compromise#
Our approach to commerciality is focused on "value engineering"—finding ways to reduce costs without compromising safety or quality. This might involve sourcing alternative compliant materials or optimising the access strategy. Because we offer both cladding testing and delivery, we can identify these savings early in the design phase.
Case Study Scenarios in Hounslow#
To illustrate our approach, consider two typical scenarios we encounter in the borough:
Scenario A: The Modern Apartment Block
A five-year-old development near Hounslow East station requires an EWS1. Testing reveals that while the panels are non-combustible, the fire cavity barriers were installed upside down, rendering them useless.
The Solution: Instead of a full recladding, we undertake a targeted remediation project. We remove vertical strips of panels, reinstall the barriers correctly, and replace the panels. The building passes inspection at a fraction of the cost of a full replacement.
Scenario B: The Office-to-Residential Conversion
An older commercial building converted to flats in the 1990s is found to have ACM cladding and timber-frame windows. The risk is high.
The Solution: A full recladding is necessary. We manage the removal of the dangerous materials, upgrade the insulation to modern standards, and install a new A1-rated aluminium rainscreen. The project is phased elevation-by-elevation to minimise the impact on the residents' daily lives.
Professional Collaboration#
Cladding projects are multidisciplinary by nature. We do not work in isolation. Our team integrates with your existing consultants or can provide a turnkey service that includes:
• Fire Engineers: To validate the safety of the proposed design.
• Structural Engineers: To ensure the building frame can support the new cladding loads.
• Architects: To maintain or improve the aesthetic appearance of the building.
• Planning Officers: Specifically within Hounslow Council, to ensure all external changes meet local planning requirements.
Moving Forward with Confidence#
The complexity of Cladding Testing and Replacement in Hounslow can be daunting for property professionals. However, by following a logical process—identifying the specific defects, assessing the risks, and implementing a proportionate solution—even the most complex façade issues can be resolved.
Our focus is on providing the technical clarity required to make informed decisions. We don't just identify problems; we deliver the engineering and construction solutions that make buildings safe and compliant. Whether you are at the start of your investigation or ready to begin a major recladding programme, a structured, expert-led approach is the only way to ensure the long-term safety of Hounslow’s built environment.
