Fire Stopping Remediation

Fire stopping remediation is the systematic process of identifying, repairing, or replacing failed and non-compliant fire protection measures within a building's service penetrations, joints, and cavities. In the context of the external building envelope, this specifically involves restoring the integrity of cavity barriers and fire breaks to prevent the spread of smoke and flame through the facade system.

For high-rise residential and commercial properties in the UK, these works are essential to ensure the building meets the requirements of the Building Regulations (specifically Approved Document B) and the Fire Safety Act 2021. Effective remediation ensures that if a fire occurs, it is contained within its compartment of origin for a specified period, allowing for safe evacuation and firefighting operations.

Key Takeaways#

• Compliance is mandatory: Remediation is often required following a failed EWS1 assessment or a Fire Risk Appraisal of External Walls (FRAEW).
• Cavity barriers are critical: These components must be correctly installed to prevent the "chimney effect" within external wall fire stopping systems.
• System compatibility matters: Remedial materials must be tested as a complete system with the specific cladding panels and insulation present.
• Holistic approach: Effective remediation addresses not just the fire stop itself, but the interfaces between the facade, windows, and floor slabs.
• Qualified installation: All remediation must be carried out by competent specialists and documented with a comprehensive Golden Thread of information.

Understanding Fire Stopping Remediation#

Fire stopping remediation is rarely a standalone task. It is typically the result of a detailed cladding testing programme that has identified systemic failures in how a building's external wall manages fire risks. When we talk about remediation, we are referring to the corrective actions needed to bring a building back into compliance with UK fire safety standards.

The external wall of a modern building is a complex assembly of layers, including the rainscreen, insulation, breather membranes, and the structural frame. Between these layers exists a ventilated cavity. Cladding fire stopping refers to the strategic placement of materials designed to close this cavity in the event of a fire, effectively sealing off the path that flames would otherwise take to travel up the building's exterior.

Remediation becomes necessary when these barriers are missing, incorrectly positioned, or made of materials that do not provide adequate fire resistance. At CladdingTesting.com, we view remediation as a precision exercise. It is about understanding the specific physics of your building's facade and ensuring that the internal compartmentation is successfully extended to the outer face of the building.

The Role of Cavity Barriers#

In facade fire stopping, the cavity barrier is the most vital component. Unlike internal fire stopping, which is usually static, external cavity barriers must allow for ventilation during normal building use while reacting instantly to heat. Intumescent strips on these barriers expand when exposed to fire, closing the air gap and preventing the spread of fire between floors or across fire-rated walls.

Common failures we encounter during inspections include:

• Gaps and bypasses: Cavity barriers that do not tightly abut the rear of the cladding panel.
• Incorrect orientation: Horizontal barriers installed vertically, or vice versa, which fails to manage airflow correctly.
• Incompatible fixings: Barriers that fall away because the fixings melted or failed during a fire event.
• Missing barriers: Large sections of the facade where no fire breaks were installed during the original construction.

Why Fire Stopping Remediation Matters#

The primary driver for fire stopping repairs cladding and wider remediation is life safety. In high-rise environments, the external wall can become a significant risk factor if fire is allowed to bypass internal floor slabs via the external cavity. However, beyond the immediate safety implications, there are several commercial and regulatory reasons why building owners must act.

Following the introduction of the Building Safety Act 2022, the "Accountable Person" has a legal duty to manage building safety risks. Failure to address known defects in external wall fire stopping can lead to enforcement action by the Building Safety Regulator (BSR). Furthermore, without evidence of compliant fire stopping, many buildings remain uninsurable or impossible to sell/mortgage, often reflected in a B2 rating on an EWS1 form.

Properly executed remediation provides:

1. Legal Compliance: Meeting the requirements of the Fire Safety (England) Regulations 2022.
2. Insurance Validity: Providing underwriters with the technical data they need to offer coverage.
3. Asset Protection: Limiting the potential for property damage in the event of a localised fire.
4. Peace of Mind: For residents and tenants who live and work in the building.

The Remediation Process: A Step-by-Step Approach#

At CladdingTesting.com, we do not believe in guesswork. Remediation must be evidence-based. We follow a structured methodology to ensure that the works are necessary, proportionate, and effective.

1. Initial Investigation and Intrusive Surveys#

Before any remediation can begin, we must understand the extent of the failure. This involves opening "inspection pits" or removing specific cladding panels to see what lies behind the facade. We check the type, condition, and installation quality of existing facade fire stopping. This survey identifies whether the problem is localised to certain elevations or is a systemic issue across the entire building.

2. Risk Assessment and Prioritisation#

Not all defects carry the same level of risk. A missing cavity barrier above a high-risk area (like a commercial kitchen on the ground floor) may require more urgent attention than a minor gap in a low-rise section. We work with fire engineers to categorise defects and develop a remediation strategy that addresses the most critical safety gaps first.

3. Specification of Materials#

Remediation is not just about "plugging holes." The materials used must be tested to BS 476 or EN 13501-2 standards and must be compatible with the existing insulation and cladding. For example, some intumescent materials may react poorly with certain types of vapour membranes. We specify fire stopping remediation materials that are proven to perform within your building's specific wall build-up.

4. Execution and Access Logistics#

Carrying out cladding fire stopping on occupied high-rise buildings is a logistical challenge. We coordinate access via mast climbers, cradles, or industrial rope access, depending on the building's height and footprint. Our teams are trained to work around residents, ensuring that the building remains weather-tight and secure throughout the process.

5. Quality Assurance and The Golden Thread#

Every fire stop we repair or install is photographed and logged via GPS-tagged digital software. This creates a "Golden Thread" of information, providing the building owner with an irrefutable record of what was done, where it was done, and what materials were used. This documentation is essential for final certification and future fire risk assessments.

Cladding Fire Stopping vs. Internal Fire Stopping#

It is important to distinguish between cladding fire stopping and the fire stopping found inside the building. Internal fire stopping usually deals with service penetrations—pipes and cables passing through compartment walls. The materials are often static sealants, batts, or pillows.

In contrast, external wall fire stopping must contend with environmental factors. It must be able to withstand wind loads, moisture, and temperature fluctuations without degrading. Because the external cavity is designed to let the building "breathe," the fire stopping cannot be a solid, permanent seal. This is why "open state" cavity barriers are used, which only seal when triggered by heat.

When we perform fire stopping repairs cladding, we often find that internal contractors have attempted to use internal-grade materials in the external cavity. This is a significant error, as these materials can trap moisture, leading to dampness and rot within the wall structure, and may not provide the necessary fire resistance in an outdoor environment.

Common Challenges in Facade Fire Stopping Remediation#

Remediating an existing building is significantly more complex than installing fire stopping during a new build. We frequently encounter "as-built" conditions that deviate significantly from the original architectural drawings. This requires a flexible, problem-solving approach to facade fire stopping.

Substrate Irregularities#

Fire barriers need a flat, solid surface to be fixed against to maintain a smoke-tight seal. In many older buildings, the inner leaf (the structural wall) may be uneven or made of materials that do not easily take fixings. We must often install additional "closer" plates or sub-frames to ensure the fire stop is securely mounted.

Interface Complexity#

The most common failure points are at the interfaces—where the cladding meets window frames, balconies, or rooflines. Fire stopping remediation often involves bespoke detailing at these junctions to ensure that fire cannot "wrap around" a barrier through a window reveal or a balcony bracket penetration.

Occupied Building Management#

Working on a building while people are living in it requires careful management of noise, dust, and privacy. We structure our cladding fire stopping programmes to minimise the time any single apartment is affected, often completing works elevation by elevation to reduce the impact on residents.

When to Repair vs. When to Replace#

A common question we receive at CladdingTesting.com is whether the entire cladding system needs to come off. Our goal is always to find the most proportionate solution. In some cases, fire stopping repairs cladding can be targeted. If the cladding panels themselves are non-combustible (such as A1 or A2 rated aluminium or stone) and the insulation is safe, we may be able to perform localised remediation by removing only the panels necessary to access the fire breaks.

However, full replacement or recladding is often the only viable route if:

• The cladding panels are highly combustible (e.g., ACM PE or certain HPL panels).
• The insulation is combustible and lacks any effective fire breaking.
• The cost of removing and re-installing old, fragile panels exceeds the cost of a new system.
• The original installation is so fundamentally flawed that "patchwork" repairs cannot be certified.

We provide building owners with a clear cost-benefit analysis for each option, ensuring that the chosen path provides long-term safety and value for money.

The Technical Requirements for External Wall Fire Stopping#

To be effective, external wall fire stopping must be installed to exact tolerances. Even a 10mm gap can allow enough hot gas to pass through and ignite materials on the floor above. The industry standard for these installations is rigorous, and at CladdingTesting.com, we adhere to the following technical benchmarks:

Compression and Fit#

For non-intumescent (static) barriers, the material must be installed under compression—usually 10-15%—to ensure a tight fit against the substrate. If the barrier is too loose, it will fail under the pressure of a fire; if it is too tight, it can deform the cladding panels.

Intumescent Air Gaps#

For ventilated rainscreen systems, the "open state" gap is critical. If the gap is too large, the intumescent material may not be able to bridge it quickly enough during a fire. If it is too small, the cavity will not ventilate properly, leading to condensation and water ingress issues. We ensure all facade fire stopping meets the manufacturer's tested air-gap specifications.

Fixing Densities#

The number and type of fixings used to hold the fire barrier in place are often overlooked. We use stainless steel fixings that can withstand high temperatures, spaced at intervals that prevent the barrier from sagging or pulling away from the wall over time.

Working with Multidisciplinary Teams#

Fire stopping remediation is rarely a solo effort. As facade specialists, we work closely with other professionals to ensure a successful outcome. This includes:

• Fire Engineers: To verify that the proposed remediation strategy meets the overall fire safety strategy for the building.
• Cladding Consultants: To ensure that remedial works do not negatively affect the thermal or acoustic performance of the facade.
• Building Control: To oversee the works and provide the final sign-off required for regulatory compliance.
• Managing Agents: To coordinate access and communicate progress to leaseholders and residents.

Our role is often to act as the technical lead, translating the fire engineer's requirements into practical, buildable solutions on site. We bridge the gap between high-level safety theory and the reality of fire stopping repairs cladding.

Insurance and Liability in Remediation#

One of the biggest hurdles for building owners is securing Professional Indemnity (PI) insurance for fire safety works. Because CladdingTesting.com focuses on evidence-backed fire stopping remediation, we provide the level of detail that insurers require. Our comprehensive reporting and digital audit trails help to mitigate risk for all parties involved.

By documenting every stage of the cladding fire stopping process, we ensure that the liability for the safety of the building is clearly managed. This is particularly important for buildings seeking funding through the Building Safety Fund (BSF) or the Cladding Safety Scheme (CSS), where strict evidentiary requirements are in place.

Future-Proofing Your Facade#

The regulations surrounding fire safety are not static. The lessons learned from major fire incidents continue to inform new standards and testing methods. When we undertake fire stopping remediation, we don't just aim for today's minimum compliance. We look to future-proof the building by using high-specification materials and installation techniques that exceed current requirements.

This proactive approach helps to protect the building's value. A facade that has been remediated to a high standard with full documentation is far more resilient to future changes in legislation than one where only the bare minimum was done. Our focus is on providing a permanent fix, not a temporary sticking plaster.

Case Study Scenarios#

Consider a typical 10-storey residential block with an EWS1 B2 rating due to missing cavity barriers at the floor levels. A targeted fire stopping remediation programme might involve:

• Removal of a horizontal "strip" of cladding at each floor level.
• Installation of new, high-performance intumescent cavity barriers.
• Verification of the fire stopping at window reveals.
• Re-installation of the original cladding with new, compliant fixings.

This approach is significantly faster and less disruptive than a full reclad, while still achieving the necessary A1 or B1 rating required for the building to be deemed safe.

The Importance of Professional Inspection#

You cannot fix what you cannot see. The most dangerous defects in external wall fire stopping are those hidden behind the panels. We recommend that any building owner or manager who is unsure about the status of their building's fire breaks commissions a professional inspection. A small investment in testing can prevent the need for much larger, more expensive fire stopping remediation projects down the line.

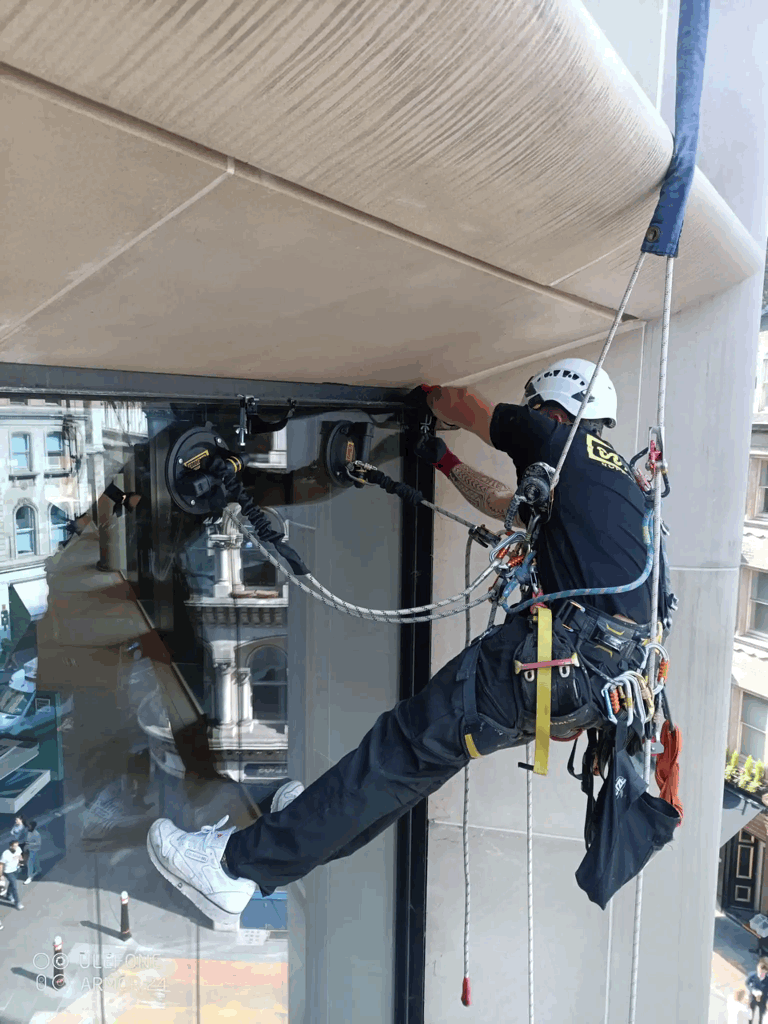

At CladdingTesting.com, our inspections are thorough. We don't just look at the easy-to-reach areas; we use drones, high-reach platforms, and intrusive methods to get a representative view of the entire building. This ensures that our remediation plans are accurate and that there are no "surprises" once the work begins.

Frequently Asked Questions#

What is the difference between a cavity barrier and a fire stop?#

While the terms are often used interchangeably in facade fire stopping, there is a technical difference. A cavity barrier is designed to close a concealed space (the cavity) to prevent fire and smoke spread. A fire stop is typically used to seal a gap between two fire-rated elements or where a service passes through a wall. In cladding fire stopping, we are usually dealing with cavity barriers.

How long does fire stopping remediation take?#

The timeline depends on the building's size and the complexity of the cladding system. A targeted fire stopping remediation on a mid-rise block may take 8–12 weeks, whereas a comprehensive programme on a large high-rise estate can take several months. We provide detailed programmes of work during the planning phase to help managing agents coordinate with residents.

Will my building need a full reclad if the fire stopping is defective?#

Not necessarily. If the cladding panels and insulation are compliant (non-combustible), we can often perform fire stopping repairs cladding by removing only the necessary panels to install the missing barriers. However, if the panels themselves are the problem, a full replacement is usually the safest and most cost-effective long-term solution.

Can fire stopping be installed from the inside?#

In most cases, no. External wall fire stopping must be installed within the cavity, which is located outside the structural inner leaf. Attempting to fix these issues from the inside would involve significant disruption to residents' apartments and would likely not address the fire spread risk within the external cavity itself.

Is fire stopping remediation covered by the Building Safety Fund?#

Yes, fire stopping remediation is often an eligible cost under the Building Safety Fund (BSF) or the Cladding Safety Scheme (CSS) in the UK, provided the building meets the height requirements and the defects are deemed to be "life safety" risks. We assist clients in preparing the technical documentation needed for these funding applications.

How do I know if the remediation was done correctly?#

At CladdingTesting.com, we provide a final completion pack that includes photographic evidence of every barrier installed, material data sheets, and a certificate of compliance. This forms part of the "Golden Thread" and is used to update your building's Fire Risk Assessment and potentially improve your EWS1 rating.

What materials are used in facade fire stopping?#

We typically use mineral wool-based barriers with an intumescent strip for ventilated cavities. These materials are chosen for their high melting points and their ability to expand rapidly when exposed to heat. All materials we use for external wall fire stopping are rigorously tested to UK and European fire standards.

Closing Thoughts on Remediation Strategy#

Fire stopping remediation is a critical investment in the safety and longevity of a building. It requires a deep understanding of building physics, material science, and construction logistics. By taking a systematic, evidence-based approach, building owners can resolve complex cladding issues, ensure regulatory compliance, and most importantly, protect the lives of those inside.

If you are responsible for a building and have concerns about the external wall fire stopping, the first step is a professional assessment. Whether the solution is minor fire stopping repairs cladding or a more extensive remediation programme, CladdingTesting.com has the expertise to guide you from the initial investigation through to a safe, certified conclusion.
