Cladding System

Definition and Scope of the Cladding System#

A cladding system is defined as an assembly of components, including panels and fixings, applied to a building exterior. While the term is frequently used to refer specifically to the visible outer layer of a structure, in a technical and regulatory context it encompasses the entirety of the external build-up. This includes the rainscreen or facing material, the supporting framework (such as rails, brackets, and carriers), insulation, cavity barriers, and the methods of attachment, whether mechanical or adhesive.

The primary function of a cladding system is to provide a weather-resistant envelope while contributing to the building’s thermal performance and aesthetic character. Because the components function as a single integrated unit, the performance of the system is dependent on the compatibility and correct installation of every individual element. In the UK, the term is central to discussions regarding building safety, as the interaction between different materials—such as the relationship between a combustible insulation layer and a non-combustible outer leaf—is a critical factor in fire performance assessments.

The Relationship Between Cladding and External Wall Systems#

The distinction between a "cladding system" and an "external wall system" (EWS) is a common point of technical discussion. While the terms are often used interchangeably in general discourse, an external wall system is broader in scope. The EWS includes the structural substrate (such as concrete, steel frame, or masonry) and the internal linings, whereas the cladding system typically refers to the layers added to the outside of that structural frame.

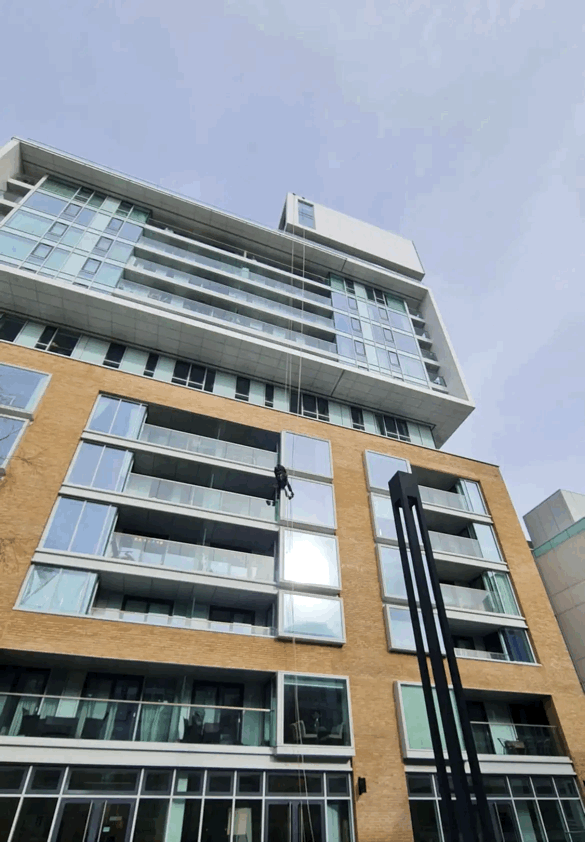

In the context of multi-storey residential buildings, the cladding system is the focus of most intrusive inspections. These inspections aim to verify that the system as built matches the design intent and complies with the functional requirements of the Building Regulations. Professionals assessing these systems look for the presence and correct positioning of cavity barriers, which are designed to prevent the spread of fire and smoke within the concealed gaps of the system. The failure of any single component, such as an incorrectly specified fixing or an absent fire break, can alter the performance characteristics of the entire assembly.

Regulatory Context in England and Wales#

The regulatory framework governing cladding systems in England and Wales has undergone significant transformation, particularly following the introduction of the Building Safety Act 2022. The emphasis has shifted towards a holistic "gateway" approach for high-rise buildings, where the design and construction of the cladding system are subjected to rigorous oversight by the Building Safety Regulator (BSR).

Guidance provided in Approved Document B remains the primary reference for fire safety requirements. It outlines the performance standards for external walls, specifying where materials of limited combustibility must be used based on building height and use. For existing buildings, the EWS1 (External Wall System) process—developed by RICS—is frequently used to assist valuers and lenders. This process involves a professional assessment of the cladding system to determine if remediation is necessary. It is important to note that the regulatory requirements are focused on the "as-built" reality of the system, rather than the original design specifications, necessitating physical site investigations.

Cladding Systems in Testing and Remediation#

When a cladding system is subject to testing, it may undergo several types of evaluation. Material-level tests, such as those categorised under BS EN 13501-1 (the Euroclass system), determine the reaction to fire of individual components. However, full-scale system tests, such as BS 8414, evaluate how the entire assembly—including the rails, insulation, and panels—behaves when exposed to a fire source.

In repair and replacement work, the concept of the "system" is paramount. It is generally advised that components should not be replaced in isolation without considering the impact on the whole. For example, replacing a damaged panel with a different product may invalidate the original system’s fire certification or wind-loading calculations. When a system is found to be deficient, remediation typically involves the removal of the entire assembly down to the substrate and the installation of a new, compliant system that has been tested as a unified whole.

Key Considerations for Building Stakeholders#

For building owners, managing agents, and directors of Residents' Management Companies (RMC) or Right to Manage (RTM) companies, understanding the cladding system is a matter of long-term asset management. These stakeholders are responsible for ensuring that the building remains safe and insurable. This requires maintaining accurate records of the system's components, often referred to as the "Golden Thread" of information.

Key technical aspects that stakeholders must consider include:

Understanding these elements is necessary when commissioning a Fire Risk Appraisal of External Walls (FRAEW) under PAS 9980. This standard provides a methodology for competent professionals to assess the risk posed by the cladding system and determine if the risk is tolerable or requires mitigation.

Common Misunderstandings and Terminology#

A frequent misunderstanding is the belief that if the outer panel is non-combustible, the entire cladding system is safe. This overlooks the role of combustible insulation, timber battening, or plastic spacers within the cavity, which can contribute to fire spread. Another misconception relates to "ACM" (Aluminium Composite Material); while ACM is a specific type of cladding panel, it is not synonymous with the term "cladding system," which describes the whole assembly.

Closely related terms include:

• Rainscreen: A specific type of cladding system designed to allow ventilation and drainage behind the outer skin.
• ETICS (External Thermal Insulation Composite System): Often called "render systems," these involve insulation fixed to the wall and finished with a reinforced base coat and decorative render.
• Curtain Walling: A non-structural outer covering that is usually self-supporting and spans multiple floors, often incorporating large glazed areas.
• Spandrel Panels: The panels used within a curtain walling or window system to cover the floor slabs or areas between glazing.

In the UK, the identification of these systems requires professional expertise. Managing agents should ensure that any surveyor or engineer appointed to inspect a cladding system possesses the relevant qualifications and professional indemnity insurance specific to fire safety and external wall assessments.
