Intrusive Cladding Survey

Understanding the internal composition of a building’s facade is a critical requirement for modern property management. An intrusive cladding survey is a detailed physical investigation where specialist engineers open up specific sections of an external wall system to inspect hidden components. Unlike visual inspections, these surveys provide definitive evidence regarding the presence of combustible materials, the adequacy of cavity barriers, and the structural integrity of fixing systems.

For building owners and managing agents, this process is the primary method for determining whether a building complies with the Building Safety Act 2022 and current Fire Safety Regulations. By physically exposing the layers behind the rainscreen, surveyors can identify exactly what materials are in situ and how they have been installed, moving beyond reliance on "as-built" drawings which are often inaccurate.

Key Takeaways#

• Definitive Data: Provides physical proof of wall build-ups, bypassing unreliable historical documentation.
• Regulatory Compliance: Essential for EWS1 (External Wall System) certifications and PAS 9980 assessments.
• Risk Mitigation: Identifies hidden fire hazards like missing cavity barriers or improper insulation.
• Cost Efficiency: Prevents unnecessary full-scale recladding by identifying areas where targeted repairs are sufficient.
• Structural Assurance: Evaluates the condition of rails, brackets, and fixings for long-term stability.

What Is an Intrusive Cladding Survey?#

An intrusive cladding survey (often referred to as a cladding opening up survey) involves the temporary removal of external panels to inspect the sub-structure. This process allows specialists to examine the insulation, fire breaks, vapour membranes, and the substrate itself. The goal is to verify that the build-up matches the design intent and meets current safety standards.

In the UK, these surveys have become standard practice for high-rise residential buildings (HRBs) over 11 or 18 metres. Because many fire safety issues are "built-in" and invisible from the ground, an intrusive facade survey is the only way to gain 100% certainty about a building’s risk profile. At CladdingTesting.com, we focus on providing these insights without causing unnecessary damage to the building fabric.

Why Intrusive Surveys are Necessary#

Visual inspections are limited to what can be seen from a distance or via drone. While they can identify surface damage or loose panels, they cannot detect a missing cavity barrier or the specific grade of insulation behind a non-combustible panel. An intrusive external wall survey bridges the gap between speculation and fact.

The Discrepancy in "As-Built" Records#

Historical building records are frequently incomplete or inaccurate. Substitutions often occurred during the original construction phase, where materials specified in the design were replaced with alternative products. An intrusive cladding survey confirms exactly what is present, rather than what was planned. This is vital for professional indemnity and insurance purposes.

Compliance with PAS 9980#

The PAS 9980:2022 code of practice provides a methodology for the fire risk appraisal of external wall construction. It requires a thorough understanding of the wall build-up. Without a facade opening up survey, a Fire Engineer cannot accurately complete a Fire Risk Appraisal of External Walls (FRAEW), which is now a legal requirement for many multi-storey buildings.

Mortgage and Valuation Requirements#

Lenders often require an EWS1 form before approving mortgages on apartments in high-rise blocks. The signatory of an EWS1 form must have sufficient evidence to support their rating. Intrusive testing provides the technical foundation for these ratings, facilitating property transactions and protecting asset value.

The Components of a Facade Opening Up Survey#

When conducting a cladding opening up survey, our team looks at the entire "sandwich" of the wall system. Each layer plays a specific role in either protecting the building or, if installed incorrectly, contributing to a fire or structural failure.

1. The External Facing Material#

We identify the exact type of panel, whether it is Aluminium Composite Material (ACM), High-Pressure Laminate (HPL), Metal Composite Material (MCM), or render. We check for brand markings to confirm the fire classification (e.g., A1, A2-s1, d0).

2. Insulation Material#

Specialists examine the type of insulation (e.g., mineral wool, PIR, Phenolic foam). We measure its thickness and check for signs of moisture degradation or improper installation that could lead to cold bridging or reduced thermal performance.

3. Cavity Barriers and Fire Stops#

This is perhaps the most critical part of an intrusive facade survey. We verify if vertical and horizontal cavity barriers are present, correctly sized, and installed with the necessary compression to stop the spread of flame and smoke within the cavity.

4. Fixings and Support Rails#

We inspect the condition of the helping hand brackets and rails. This includes checking for galvanic corrosion (where two dissimilar metals react) and ensuring the pull-out strength of fixings into the substrate is sufficient for the wind loads of the building.

5. Vapour Barriers and Sheathing Boards#

The survey checks for the presence and condition of breather membranes and sheathing boards (e.g., cement particle board or calcium silicate). We look for evidence of water ingress that could rot timber frames or corrode light-gauge steel frames (LGSF).

How the Survey Process Works#

A systematic approach is required to ensure the survey is representative of the entire building while minimising disruption to residents. At CladdingTesting.com, we follow a rigorous methodology to ensure no detail is overlooked.

Phase 1: Desk Study and Planning#

Before arriving on site, we review all available O&M (Operation and Maintenance) manuals, fire strategies, and previous inspection reports. We identify "high-risk" areas, such as interfaces between different cladding types, window reveals, and floor levels where cavity barriers should be located.

Phase 2: Access Strategy#

Access is often the most complex part of a cladding opening up survey on high-rise buildings. Depending on the building's height and surroundings, we may use:
- Mobile Elevating Work Platforms (MEWPs): Ideal for heights up to 30-40 metres.
- Mast Climbers: Efficient for large-scale access on taller blocks.

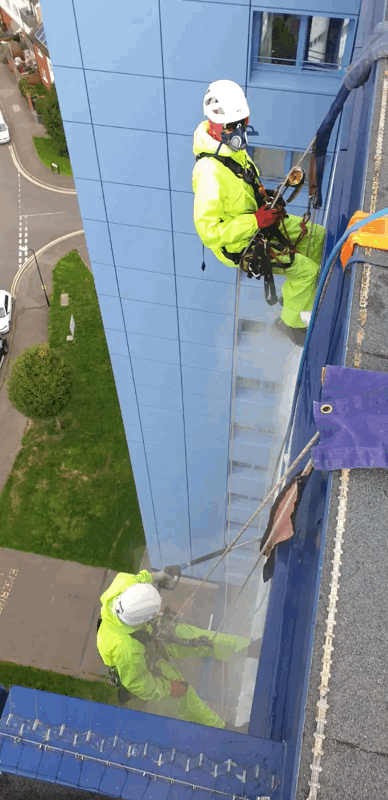

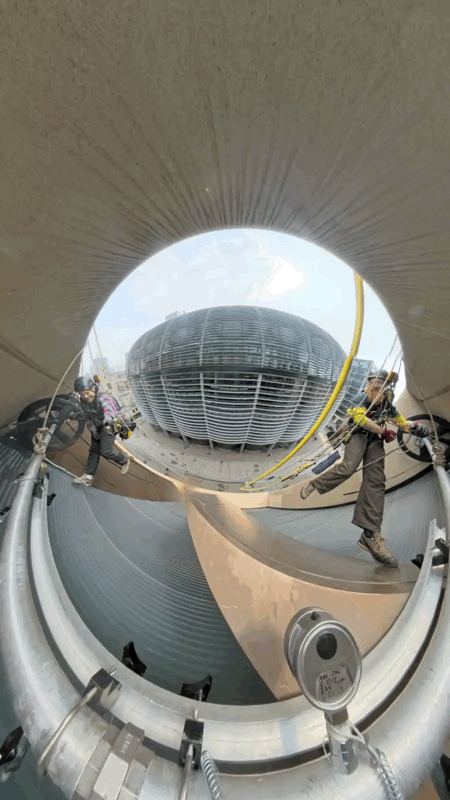

- Abseil / Rope Access: Cost-effective for targeted inspections in hard-to-reach areas.
- Scaffolding: Usually reserved for when remediation starts immediately after the survey.

Phase 3: Controlled Opening Up#

Panels are carefully removed by trained operatives. We typically aim for a "non-destructive" approach where panels are removed and reinstated on the same day. In some cases, small "borescope" holes are used for initial peeks, but a full intrusive cladding survey requires physical removal for a clear view.

Phase 4: Laboratory Testing (If Required)#

If the identity of a material is unclear, samples are taken for laboratory analysis. This might include "bomb calorimeter" testing to determine the calorific value of an insulation core or chemical analysis to identify a specific polymer type.

Evaluating Structural Integrity and Fixings#

While fire safety is the current priority in the UK market, the structural performance of the facade is equally important. During an intrusive facade survey, we evaluate the mechanical stability of the system. Over time, thermal expansion, wind loading, and moisture can compromise the fixings that hold panels in place.

Common Structural Defects Identified:

• Loose Fixings: Screws or rivets that have worked loose due to vibration or poor initial installation.
• Corrosion: Rusting of steel components or "white rust" on aluminium, often caused by trapped moisture or salt air in coastal areas.
• Incorrect Spacing: Brackets placed too far apart, failing to meet the manufacturer's wind-load specifications.
• Substrate Failure: Crumbling masonry or weakened steel studs that can no longer support the weight of the cladding.

The Role of the Surveyor vs. The Fire Engineer#

It is important to distinguish between the technical data collection and the risk assessment. A cladding opening up survey provides the technical data—what is there and how it is fixed. A Fire Engineer then uses this data to perform a risk assessment under PAS 9980.

At CladdingTesting.com, we work alongside these professionals to ensure the data we provide is exactly what they need to make an informed decision. This collaborative approach ensures that building owners receive a comprehensive roadmap for any necessary remediation.

Assessing Occupied Buildings#

Conducting an intrusive external wall survey on an occupied residential block requires high levels of sensitivity. Residents are often concerned about both the safety of their homes and the potential costs of remediation. We prioritise clear communication and minimal noise disruption.

Logistical Considerations for Occupied Blocks:

• Resident Notification: Ensuring all tenants know when and where work will take place.
• Privacy: Being mindful of windows and balconies during access.
• Weatherproofing: Ensuring that once a panel is removed, the internal wall remains protected from rain until it is replaced.
• Safety Cordoning: Strictly managing the area beneath the access equipment to protect pedestrians.

From Survey to Remediation: Three Potential Outcomes#

The results of an intrusive cladding survey will generally lead to one of three recommendations. We focus on the most practical and cost-effective route that ensures safety without unnecessary waste.

1. Localised Repair#

In many cases, the cladding system is fundamentally sound but has specific defects. This might include a few missing cavity barriers at window heads or loose fixings on one elevation. Here, we recommend targeted repairs rather than a full replacement.

2. System Remediation#

Remediation is required when the system has widespread but fixable issues. For example, if the insulation is non-combustible but the fire breaks were installed backwards or with gaps. We can often remediate these issues by removing sections, correcting the internal components, and reinstalling the original panels.

3. Complete Recladding#

Full replacement is the last resort, recommended only when the materials themselves (such as ACM Category 3) pose an unacceptable risk or when the system is so deteriorated that repair is impossible. In these cases, we manage the transition from the intrusive external wall survey into a full design and build recladding project.

Common Challenges During Intrusive Surveys#

No two buildings are identical, and an intrusive facade survey often reveals unexpected complexities. Being prepared for these challenges is what separates specialists from general contractors.

Hidden Hazardous Materials#

Older buildings may contain asbestos within the sheathing boards or older bitumen-based membranes. Our surveyors are trained to identify these hazards early to ensure safe handling and disposal.

Complex Geometries#

Modern architecture often features curved facades, deep soffits, and complex corner details. These areas are frequently where installation errors occur, but they are also the hardest to inspect. We use specialised tools and varied access methods to ensure even the most difficult corners are checked.

Weather Dependencies#

High winds can prevent the use of cradles or MEWPs, while heavy rain can make opening up the facade risky for the building's interior. We plan "weather windows" to ensure the cladding opening up survey proceeds safely and without causing water ingress.

Regulatory Context in the UK#

The regulatory landscape for external walls has shifted significantly. The Building Safety Act 2022 introduced the role of the Principal Accountable Person (PAP), who has a legal duty to manage building safety risks. An intrusive cladding survey is a key tool for the PAP to demonstrate they are meeting their "Golden Thread" of information requirements.

Furthermore, the Fire Safety (England) Regulations 2022 require responsible persons for multi-storey residential buildings to provide information to Fire and Rescue Services about the design and materials of the external walls. An accurate survey report is the most reliable way to fulfil this obligation.

Reporting and Documentation#

The output of an intrusive facade survey is a comprehensive technical report. This document serves as a "health record" for the building's envelope. A high-quality report should include:

• High-Resolution Photography: Clear photos of every opening, showing insulation, barriers, and fixings.
• Material Specifications: Exact identification of all components found.
• Annotated Drawings: Mark-ups showing exactly where each opening was made.
• Defect Logs: A clear list of any non-compliance or deterioration found.
• Risk Categorisation: Prioritisation of any issues found (e.g., immediate safety concern vs. long-term maintenance item).

Cost Considerations for Intrusive Surveys#

While an intrusive cladding survey represents an upfront cost, it is significantly cheaper than the alternative of "guessing" the remediation requirements. The cost of a survey is typically influenced by:

• Building Height and Scale: Taller buildings require more expensive access equipment.
• Number of Openings: A larger number of samples provides higher statistical confidence but takes more time.
• Access Complexity: Buildings with setbacks, balconies, or restricted ground access require more planning.
• Laboratory Requirements: The need for off-site material testing.

At CladdingTesting.com, we provide transparent pricing based on a clear scope of work, ensuring building owners can budget effectively for these essential investigations.

The Future of Facade Inspection#

As technology evolves, we are seeing the integration of digital tools into the intrusive external wall survey process. This includes the use of 3D laser scanning to create digital twins of the building and the use of thermal imaging to identify "hot spots" where insulation might be missing before we even start the physical opening up.

However, technology will never fully replace the need for physical inspection. The tactile evidence provided by a cladding opening up survey remains the gold standard for safety and insurance purposes.

Frequently Asked Questions#

How many openings are needed for a representative survey?#

There is no fixed number, as it depends on the building's size and complexity. Typically, a Fire Engineer will recommend a selection of openings that cover different elevations, different cladding types, and various floor levels. For a standard 10-storey block, we might perform between 10 and 20 openings to ensure a representative sample of the construction quality.

Will an intrusive survey damage my building?#

An intrusive cladding survey is designed to be as non-destructive as possible. Panels are carefully removed and then reinstated using the original fixings or identical replacements. If a panel must be damaged to be removed, we ensure a colour-matched replacement is sourced or that the area is temporarily made watertight and aesthetically acceptable.

Do I need an intrusive survey if I have an EWS1 form?#

If your EWS1 form was completed based only on a visual inspection or old records, it may no longer be considered valid by lenders or the fire service. Many early EWS1 forms are being reviewed. If there is any doubt about the accuracy of the original assessment, a facade opening up survey is recommended to confirm the findings.

How long does a survey take to complete?#

On-site work for a medium-sized building usually takes between 3 and 5 days. However, the planning phase and the subsequent production of the technical report can take several weeks. If laboratory testing is required for material identification, this can add further time to the final delivery of the report.

Who is qualified to carry out these surveys?#

These surveys should be carried out by specialists with specific experience in cladding systems and building envelopes. The team should include qualified surveyors or engineers and experienced cladding operatives who understand how to dismantle and rebuild complex systems safely. At CladdingTesting.com, our teams possess the technical knowledge required to handle high-rise projects.

Can an intrusive survey help with insurance premiums?#

Yes. Insurers are increasingly wary of buildings with unknown cladding build-ups. By providing a detailed intrusive external wall survey report that proves the building is safe—or by providing a clear plan for remediation—building owners can often negotiate more favourable insurance terms compared to leaving the risk unquantified.

What happens if the survey finds combustible materials?#

Finding combustible materials does not always mean the building is unsafe or needs a full recladding. The Fire Engineer will assess the findings in the context of the whole building (including sprinklers, alarm systems, and evacuation routes). The survey simply provides the facts needed to make that professional judgement.

Final Thoughts for Property Professionals#

The move towards higher safety standards in the UK is a permanent shift. An intrusive cladding survey is no longer an optional "extra" but a fundamental part of responsible asset management. By identifying the reality of a building's construction, property professionals can move from a position of uncertainty to a position of control.

Whether you are managing a single block or a large portfolio, understanding the hidden details of your facade is the first step toward long-term safety and financial stability. At CladdingTesting.com, we are committed to providing the clarity and technical expertise required to navigate these complex challenges.
